Description

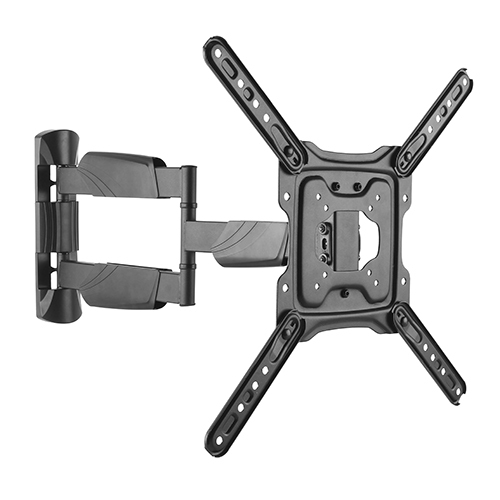

BRATECK 23”-55” Full motion TV wall mount bracket. Extend, tilt and swivel. VESA Support up to: 400×400 Max load: 35kg. Profile: 49-615mm. Hidden cable management. Colour: Black.
Elegant Full-Motion TV Wall Mount
The LPA50-443AL is a full-motion wall mount for most 23”-55” LED, LCD flat panel TVs up to 35kg/77lbs. The lengthened arm can be stretched up to 615mm for a full range of movement to perfectly position your screen display – swivel up to 90° left or right and -15°~+5° tilt. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 400×400.
-
Free-tilting design for multiple monitor viewing angles
-
Swivelling arm(s) offer(s) maximum viewing flexibility
-
Built-in level adjustment ensures perfect positioning
-
Cable management keeps everything organised
All Brateck brackets come with a 5 Year Warranty.
| Specifications | |
| By Grade | Standard Series |
| By Function | Full Motion |
| By Mounting Pattern | Standard VESA |
| Material | Steel, Plastic |
| Pipe Size (mm) | 40 x 20 x 1.5mm |
| Surface Finish | Powder Coating |
| Colour | Black |
| Product Size (mm) | 435 x 435 x 615mm |
| Suggested Screen Size | 23″~55″ |
| Installation | Solid Wall, Single Stud |
| Rated Load | 35kgs |
| Strength Tested | 3 Times Approved |
| Max. Hole Pattern | 400 x 400 |
| VESA | 75×75; 100×100; 200×100; 200×200; 300×200; 400×200; 300×300; 400×300; 400×400 |
| Tilt | +5°~-15° |
| Swivel | +90°~-90° |
| Level Adjustment | +3°~-3° |
| Rotating | – |
| Profile | 49mm~615mm |
| Bubble Level | No |
| Anti-Theft | No |
| Cable Management | Yes |
| Wall Seperated | No |
| Panel Seperated | Yes |
| AV Component Mount | No |
| Freely Tilting | No |
| Freely Height Adjustable | No |
| Motorized | No |
| Curved TV Available | Yes |
| Certification | – |
| Patent | – |
